Architectural Tour of the UK: The Pineapple at Dunmore
I have always been fascinated by The Pineapple. Since I am headed to the UK for the week it seemed like the perfect time to learn more about this historic home turned hotel in central Scotland.
Enjoy this little history lesson.
The Dunmore Pineapple is a folly said to “rank as the most bizarre building in Scotland.” It is situated in Dunmore Park, approximately one kilometre northwest ofAirth and the same distance south of Dunmorein the Falkirk council area, Scotland.
The walled garden at Dunmore Park
Dunmore Park, the ancestral home of the Earls of Dunmore, includes a large country mansion, Dunmore House,  and grounds which contain, among other things, two large walled gardens. Walled gardens were a necessity for any great house in a northern climate in the eighteenth and nineteenth century, as a high wall of stone or brick helped to shelter the garden from wind and frost, and could create a microclimate in which the ambient temperature could be raised several degrees above that of the surrounding landscape. This allowed the cultivation of fruits and vegetables, and also of ornamental plants, which could not otherwise survive that far north.
The larger of the two gardens covers about six acres, located on a gentle south-facing slope. South-facing slopes are the ideal spot for walled gardens and for the cultivation of frost-sensitive plants. Along the north edge of the garden, the slope had probably originally been more steep. To allow both the upper and lower parts of the garden to be flat and level at different heights, it was necessary to bank up the earth on the higher northern side (away from the main house), behind a retaining wall about 16 feet high, and a solid 3 feet, 3 inches thick, which runs the entire length of the north side of the garden.
Walled gardens sometimes included one hollow, or double, wall which contained furnaces, openings along the side facing the garden to allow heat to escape into the garden, and chimneys or flues to draw the smoke upwards. This particularly benefited fruit trees or grape vines that could, if grown within a few feet of a heated, south-facing wall, be grown even further north than the microclimate created by a walled garden would normally allow.
A building containing a hothouse was built into this wall in 1761 by John Murray, 4th Earl of Dunmore. The hothouse, which was located in the ground floor of the building, was used, among other things, for growing pineapples. The south-facing ground floor, which is now covered in stucco and largely overgrown with vines, was originally covered with glass windowpanes. Additional heat was provided by a furnace-driven heating system that circulated hot air through cavities in the wall construction of the adjoining hothouse buildings. The smoke from the furnace was expelled through four chimneys, cleverly disguised as Grecian urns. The upper floor, which is at ground level when approached from the raised northern lawn, contained two small cottage-like apartments, or “bothies”, for the gardeners.
Murray left Scotland after the initial structure had been built, and went on to become Colonial Governor of Virginia in America. The upper-floor pavilion or summerhouse with its pineapple-shaped cupola and the Palladian lower-floor portico on the south side were added after Murray’s return from Virginia.

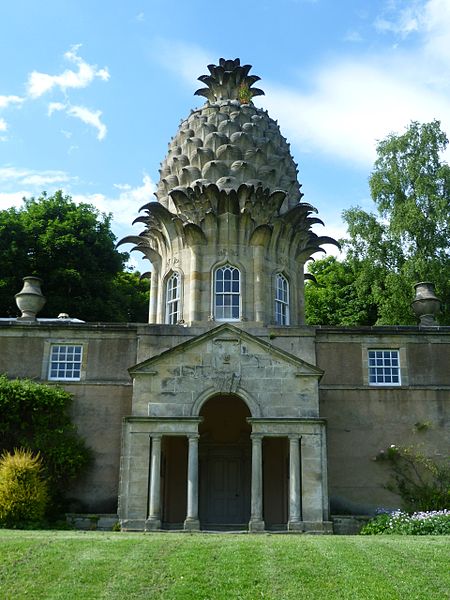

The building is a mixture of architectural styles. The south (ground floor) entrance takes the form of a characteristically Palladian Serliana archway, incorporating Tuscan columns. Visitors who step through this archway and into the vestibule below the pineapple face an elaborately framed doorway, flanked, on either side, by pairs of painted wooden Ionic columns, carved with great care, which display perfect fluting and even architecturally correct entasis. The keystone of the Serliana arch is inscribed with the date “1761.” This has caused some people to speculate that the pineapple was constructed in 1761,  although there is no clear evidence that the archway and the pineapple were built at the same time, or even designed by the same architect. Others suggest that the pineapple was constructed after Murray’s return from America in 1776.
Above the Serliana arch is inserted a “later and clumsier, ” panel bearing a relief carving of a heart charged with a cinquefoil knot and inscribed with the mottoFidelis in Adversis. The design and motto are taken from the Douglas-Hamiltoncoat of arms, and probably commemorate the marriage, in 1803, of George Murray, the 5th Earl of Dunmore, to Lady Susan Douglas-Hamilton, daughter ofArchibald Hamilton, 9th Duke of Hamilton.

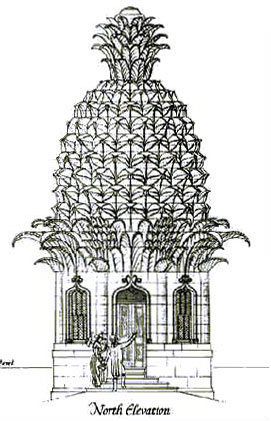

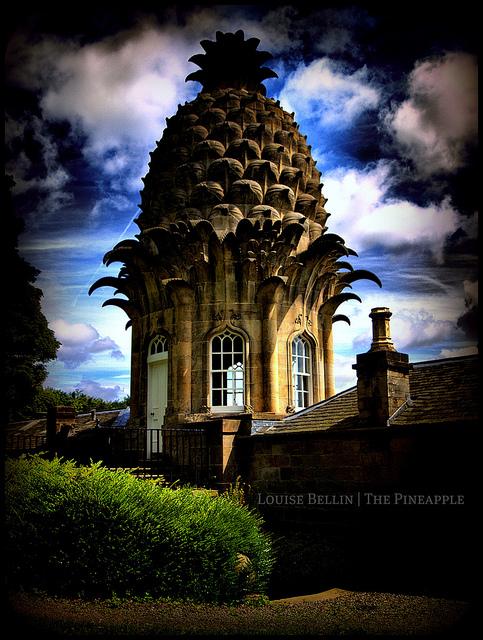

The intricately carved stone pineapple, which is situated between the two bothies, forms an elaborate cupola atop an octagonal pavilion, with sash windowstopped with Gothic (or, more accurately, Gothick) ogee arches on seven sides and a door, topped with an ogee transom, on the eighth. The door, on the north side, exits onto the upper level of the garden. Inside the pavilion, the stone walls are gently curved, so that the room is circular rather than octagonal. Even the door and the panes of glass in the seven windows are curved, so as to match the curve of the walls in the room. The pavilion is just large enough to house a round table and some chairs.

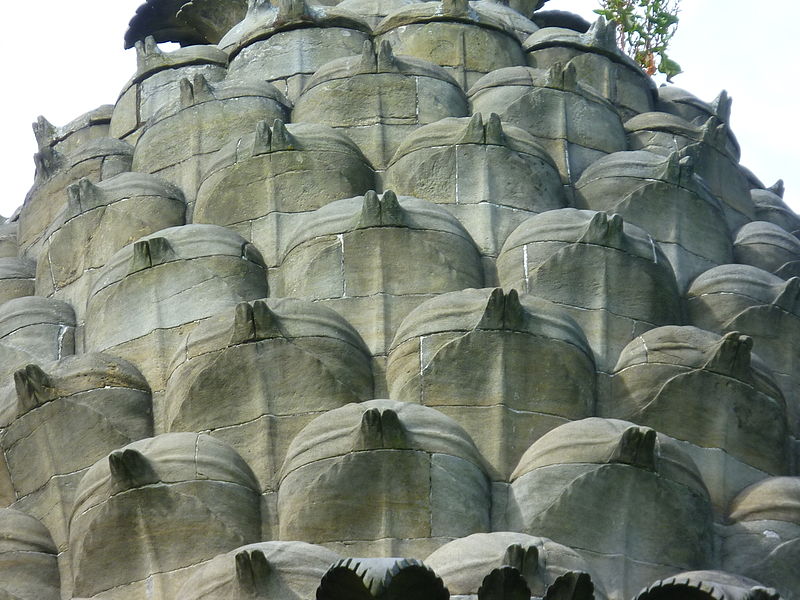

The pineapple is around 14 metres high and constitute a stunning example of thestonemason‘s craft, being a remarkably accurate depiction of a pineapple. Each of the curving stone leaves is separately drained to prevent frost damage, and the “stiff serrated edges of the lowest and topmost leaves and the plum berry-like fruits are all cunningly graded so that water cannot accumulate anywhere, ensuring that frozen trapped water cannot damage the delicate stonework.”

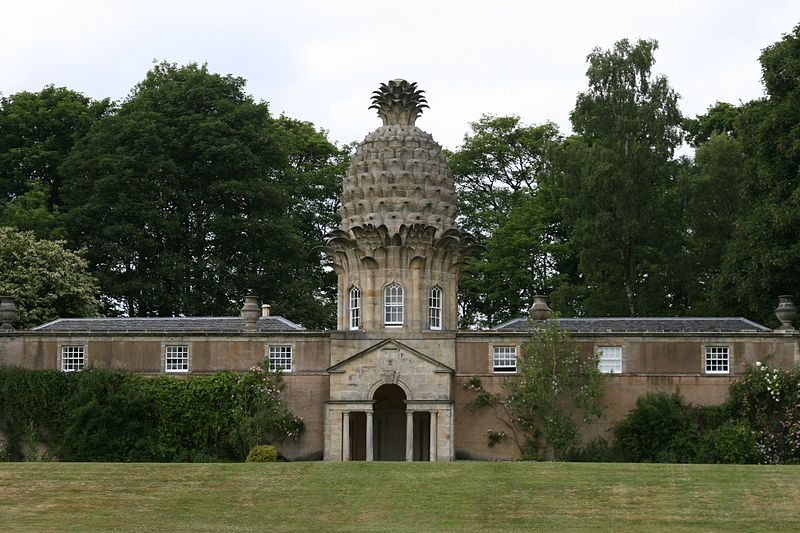

Despite the unconventional design and the mix of architectural styles, the effect is harmonious because the pineapple and the portico are made of the same stone (ensuring a single colour from top to bottom) and are of a consistent width. Together, they draw the eye upwards in a single smooth motion. The height of the building, from the bottom of the lower floor to the top of the pineapple, is exactly half the width of the structure. Additionally, the width of the portico and pineapple matches the height of the south façade. Together, these elements, along with the four equally spaced urn-shaped chimneys, add to the sense of Classical order and harmony.
The identity of the designer of the folly is uncertain, but it is often attributed to Sir William Chambers who designed similar fanciful structures at Kew Gardens, and who showed a similarly meticulous attention to detail (including curved panes of glass and chimneys disguised as rooftop urns) in his design for the Casino at Marino, just outside Dublin
Pineapples as a decorative motif
Discovered by Christopher Columbus on the Caribbean island of Guadeloupe in 1493, pineapples became a rare delicacy in Europe, and were symbolic of power, wealth, and hospitality. The pineapple was adopted as a motif by architects, artisans and craftsmen, being sculpted into gateposts, railings, weather vanes and door lintels. The motif also featured prominently in interior decoration, fabricsand furniture. The Dunmore Pineapple is perhaps the most spectacular architectural use of the motif.
Ownership and restoration history
After remaining in the family for centuries, the Dunmore Estate was broken up in 1970 and sold in lots. One lot, called the “Pineapple Lot”, included the folly and the large walled garden, along with some woodlands and a small lake. This lot was purchased by the Countess of Perth, and in 1974 was given to the National Trust for Scotland. The “Pineapple Lot” was then leased to the Landmark Trust, who restored the building and used it to provide holiday accommodation. The 6.5 hectares of gardens, including woodland, pond and crab-apple orchard, are open to the public year-round.
Today, the gardeners’ quarters and the pineapple summerhouse may be rented as a holiday home. The bothy on one side of the Pineapple houses two bedrooms and a bathroom, and the bothy on the other side contains a kitchen and a spacious living room. The rooms have sash windows with a southern exposure overlooking the main (lower) lawn of the estate. Due to their southern exposure, the windows ensure that the rooms are sunlit throughout the day.
all from Wikipedia– click HERE for sources and external
